Introduction

Computer architecture determines how programs execute in hardware—how work unfolds over time and across resources. Most readers are familiar with processors through the Von Neumann model , where programs are executed as sequences of instructions. In this view, execution appears strictly ordered: instructions are fetched, executed, and their results are written back one after another.

Modern systems, however, look very different. Architectures such as superscalar out-of-order processors, GPUs, dataflow machines, and domain-specific accelerators depart from this simple model in significant ways. Despite these differences, they can be understood as making different choices about three key questions: when work enters the machine, when it executes, and when its results become visible.

These choices matter because they shape how programs actually run. Some architectures try to expose as much parallel work as possible, admitting and executing many operations at once. Others are more conservative, limiting how much work enters the system or delaying when results become visible in order to control resource usage or enforce ordering. As a result, performance, efficiency, and scalability depend on how a system manages work as it moves through the machine.

Despite this diversity, there is no common way to compare these design choices across architectures. Most execution models are studied in isolation, and system behavior is explained in terms of specific mechanisms rather than a shared structure. This makes it difficult to compare designs, transfer insights across systems, or explain performance in a principled way.

This work presents a general model for comparing runtime and state trade-offs across architectures. At a high level, we observe that all of these systems are solving the same problem: managing work while it is active inside the machine .

Understanding execution is challenging because it emerges from the interaction of software, interfaces, and hardware. Software defines what work is available, interfaces define when operations are allowed to execute and become visible, and hardware implements these rules under finite resources. Existing approaches typically separate these concerns: formal models describe correctness, while performance models describe efficiency. However, they do not explain how correctness constraints shape performance. In practice, many bottlenecks arise not from a lack of resources, but from how systems enforce correctness—for example, by restricting when results can become visible.

Another limitation is that most models focus on how work executes, but not how it is managed while it is in flight. Real machines must track partially completed operations under finite resources, yet these mechanisms are often studied separately. As a result, execution is understood as a collection of components rather than as a unified process.

We introduce regulated execution , a model that treats execution as the management of in-flight work. In this view, operations enter the system, remain active while they execute, and eventually complete when their results become available. Throughout this process, the machine must track and coordinate these operations using limited hardware resources. Architectures can therefore be understood as regulating how work evolves within the machine .

To make this concrete, we introduce Stateflow , a framework for describing how architectures regulate the existence and movement of work during execution. Under this view, systems that appear very different—from superscalar processors to GPUs and dataflow machines—can be understood as different choices within a common execution structure .

Contributions. This work makes the following contributions:

• Regulated execution , a model that describes execution as the evolution of in-flight work under correctness and resource constraints.
• Stateflow , a framework for describing architectures in terms of how they admit, execute, and complete work.
• A cross-paradigm simulator that enables direct comparison of architectures within a unified performance–state tradeoff space.

Using this framework, we place different architectures within a common performance–state tradeoff space, shown in Figure 1. Allowing more work to be active can improve performance, but it also requires maintaining more state and often changes what limits execution. We find that bottlenecks do not arise accidentally—they follow directly from how architectures enforce correctness and manage in-flight work.

Using the Stateflow framework, we show how architectural choices governing the exposure of work determine both the amount of live-state maintained in the system and the performance that can be achieved. This allows us to model diverse architectures and place them at different points along a common performance–state tradeoff space illustrated in Figure 1. Common bottlenecks arise, showing that architectural design does not remove constraints but determines which one limits performance.

Taken together, these contributions suggest a different way to think about computer architecture.

Regulated Execution

This section introduces a structured explanation of execution systems that identifies the underlying process, invariants, and principles governing them. The derived model(Figure 4) explains how systems behave, allowing us to reason about performance and efficiency across machines.

Execution Dynamics

We first describe how execution proceeds as a process of managing live work inside the machine.

Live State. At any point in time, the machine holds a set of active work: operations that have been brought into the system but have not yet completed and released their resources. This includes work that is ready to execute, currently executing, or finished but not yet committed. We refer to this as live state . It represents everything the machine must track to keep execution moving forward.

Execution Policies. Execution is governed by three interacting policies that control how this live state evolves:

• Admission : determines what work is allowed to enter the machine. Bringing in more work increases live state.
• Fire : determines which admitted operations execute. Execution consumes resources and transforms state, but does not change how much state exists.
• Retire : determines when work is completed, its results are made visible, and its state is released. Retirement reduces live state.

These policies together regulate how much work the machine is carrying at any time. If work enters faster than it completes, live state builds up; if work completes faster than it enters, the machine runs out of work. Sustained execution requires balancing these forces.

The simplest system, shown in Figure 2A, tightly couples all three policies. Work is only admitted when it can immediately execute, and results become visible as soon as they are produced. This creates a strict pipeline with minimal live state: a single program counter tracks the next instruction, and execution proceeds one operation at a time through a single stage that fetches, executes, and completes in lockstep.

Figure 2: Pipeline construction.

(a) In-order von Neumann (InOvN) pipeline: execution follows the strictest order, therefore the pipeline tracks the least.

---

(b) Pipeline with added admit stage to enable relaxed admission.

---

(c) Pipeline with added retire stage to enable speculation.

Execution Requirements

We now define two essential requirements of execution: correctness and stability.

Correctness constrains what executions are permitted (semantic validity); stability constrains how executions can proceed on finite hardware (physical viability).

Correctness.

A program specifies a partial causal order over dynamic operations corresponding to true data and control dependencies. A correct execution must respect this causality: no operation may consume a value before its producer has produced it, and no execution may make an effect visible that violates the program’s causal order. Correctness therefore restricts the allowable trajectories of execution, but does not determine the physical realizability. In this view, correctness constraints do not only restrict firing, but also shape how work can be admitted and completed, and therefore directly influence performance.

Implication for Optimizations Modern out-of-order (OoO) processors exploit a key insight: correctness does not require operations to execute in program order, only that data dependencies are respected and results become visible in a valid order.

This separation enables two optimizations.

First, OoO processors admit instructions early. They place instructions into structures such as the instruction window as soon as their dependencies are known, without waiting for inputs to be ready. This corresponds to relaxed admission : operations become live before they can execute. Execution is then scheduled dynamically—an instruction fires as soon as its inputs arrive—exposing parallelism not visible in program order. Correctness is preserved because execution still waits for inputs.

Second, OoO processors use speculation. They execute instructions before it is known whether they are needed, for example by predicting branches or memory dependencies. These speculative results are held in structures such as the reorder buffer and are not made visible immediately. This corresponds to separating execution from retirement : results are computed early but only published once validated. Incorrect speculation is discarded.

Together, relaxed admission and speculation allow execution to move ahead of program order, while correctness is enforced at retirement when results become visible.

Figure 4: Closed-loop interpretation of regulated execution. Work is admitted into live-state, scheduled subject to finite execution bandwidth, fired, and eventually retired. Admission is constrained by finite live-state capacity, inducing feedback from occupancy to exposure, while scheduling is constrained by finite execution bandwidth, inducing feedback from resource limits to firing. Together these feedback paths make execution a closed-loop dynamical system over live-state.

Stability

Real machines operate under finite resources, imposing bounds on live-state and execution bandwidth. These bounds act as regulators on the execution dynamics in Figure 4, converting it into a closed-loop system. A bounded state capacity limits how much work can be live at once, forcing admission to slow or stop as the machine fills. The same applies for PE or execution bandwidth limits. Stability therefore requires not just bounding state, but ensuring progress: admitted work must eventually leave the system through retirement or discard, rather than accumulating indefinitely.

Stateflow Execution Model

This section introduces Stateflow , a framework for modeling how machines regulate execution. We represent systems using a three-layer system stack as shown in Figure 3. The stack includes an architectural contract that an architectural contract that specifies what the hardware must guarantee, a program model that provides an abstraction for software to specify work to the machine, and an abstract machine model that shows how the hardware actually instantiates this process under finite resources. Architectural policies allow specifying concrete machines within this framework. Different architectures correspond to different choices of these policies, which we demonstrate later in Table 1. Together, these components connect program structure, architectural policy, and hardware behaviour into a single model of execution.

Figure 3: Stateflow system stack.

Architectural Contract

The architectural contract defines the interface between software and hardware. It specifies what a program may request and the conditions under which execution is valid.

Execution is governed by two kinds of constraints.

Temporal constraints determine when execution may proceed.
An operation cannot execute until its inputs are available, and results cannot be made visible until correctness conditions are satisfied.

Spatial constraints determine whether execution may proceed.
An operation requires resources—such as storage, bandwidth, or compute—and must wait if they are unavailable.

These constraints appear in all systems. For example, computation cannot begin until inputs are ready, and cannot continue without sufficient memory or bandwidth. Architectures differ in how they enforce these constraints, leading to different performance outcomes.

Three-Stage Contract

We describe execution using three stages: Admit , Fire , and Retire .
Admit introduces work into the machine, Fire performs computation, and Retire completes work and exposes its results.

Admit (State Allocation).

Admission makes an operation live by allocating state.

Spatial constraint (capacity).
An operation is admitted only if sufficient state is available.

Temporal constraint (drainability). Admitted work must be able to complete. This is enforced through producer-closed admission , which ensures that operations are only admitted when their completion can be supported by existing or admissible work.

Fire (Execution).

Firing executes an admitted operation.

Temporal constraint (dependencies).
Execution requires all inputs to be available.

Spatial constraint (bandwidth). Execution proceeds only if compute and data movement resources are available.

Retire (Publication). Retirement completes an operation, releases its state, and makes its results visible.

Before retirement, results may exist internally but are not observable. Retirement determines when results become visible, enforcing both synchronization and isolation.

Program Model

Stateflow introduces a novel program graph abstraction that separates the conditions for state allocation , execution , and publication and state deallocation , allowing the program to explicitly specify how operations enter and leave live-state. This exposes the amount and lifetime of state required to sustain execution, allowing reasoning about whether execution fits within a finite capacity (boundedness) and whether all admitted work can complete (drainability).

We represent a program as a directed graph of operations and dependencies.

Nodes. A program is defined as a finite set of operations O. An operation denotes a unit of work that may occupy machine state. Operations may be primitive instructions or structured super-operations that encapsulate subgraphs (see Figure 6).

Edges. An operation’s edges define the conditions that must be satisfied for it to move through the stages of the architectural contract. Each edge acts as a gate that blocks later stages until its condition is met.

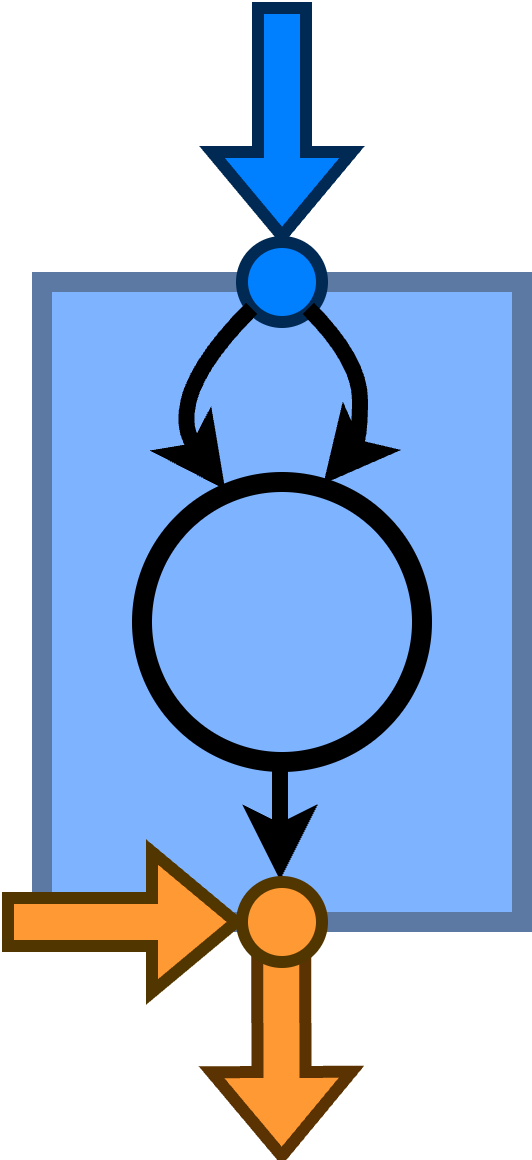

Figure 5 illustrates this behaviour. Even if its inputs are ready, the operation cannot enter the machine until its admit condition is satisfied. Once admitted, it occupies state but cannot execute until its fire conditions are met. Execution produces results immediately, but those results remain internal until retire. Only then does the operation complete and publish.

Figure 5: Operation in Stateflow.

Super-operations. Super-operations encapsulate structured regions of a program and define scoped boundaries for admission and retirement. Externally, a super-operation behaves as a single unit: it is admitted when its incoming dependencies are satisfied, and it retires only after all internal work has completed. Internally, however, it may contain a rich dependency structure that can execute according to local rules.

To ground this idea, consider the dense matrix-vector multiplication (DMV) kernel in Figure 6. Each iteration of the outer loop computes one output element independently.

for i = 0 ... m-1:
    w = 0
    for j = 0 ... n-1:
        w += A[i,j] * B[j]
    Z[i] = w

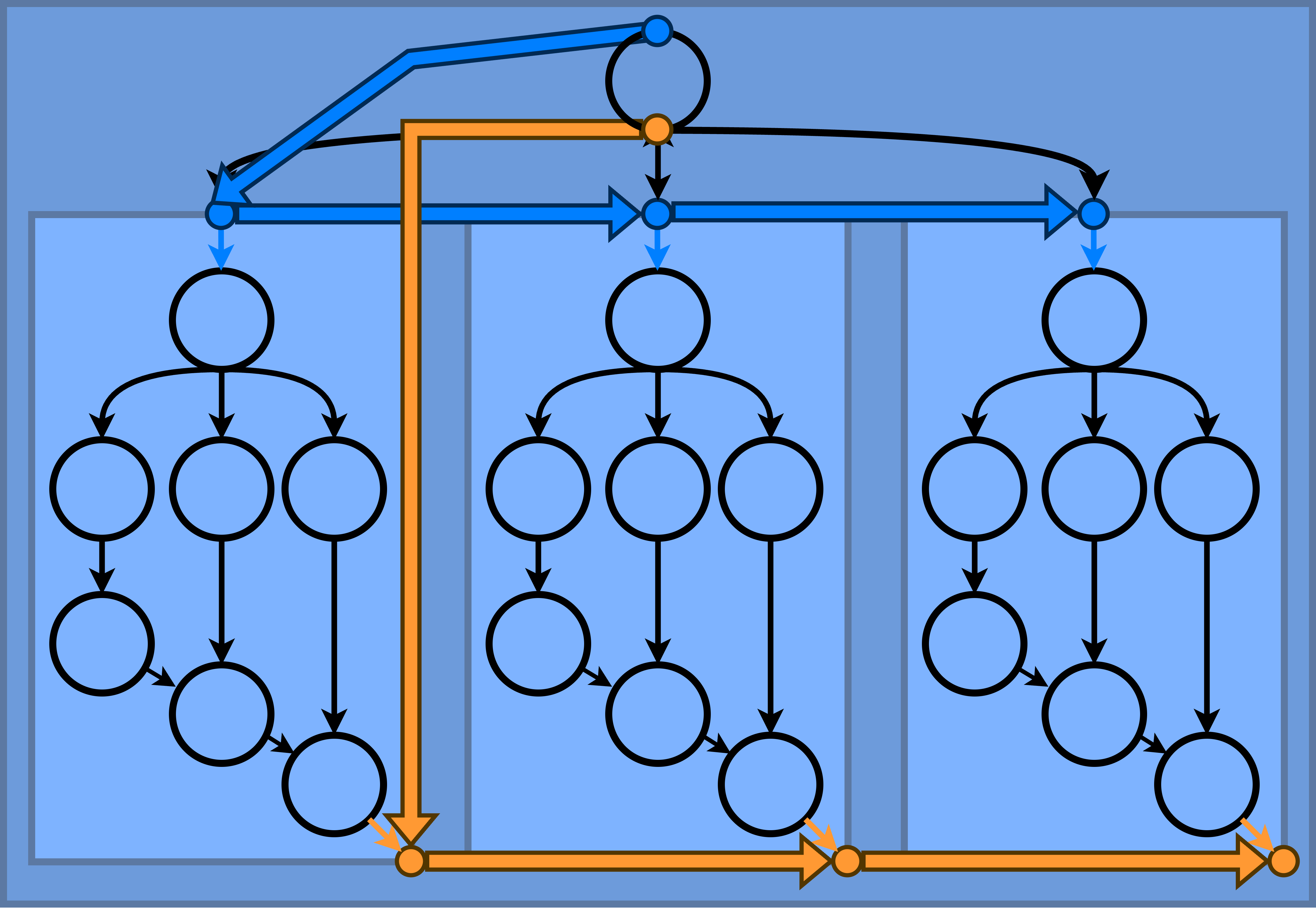

Figure 6: Dense matrix-vector multiplication (DMV) and its super-operation representation. Left: compact program form. Right: each row is a super-operation with admission (blue) and retirement (orange) dependencies. Internal operations execute according to local dataflow, exposing parallelism within each row while preserving controlled visibility across rows.

Figure 6 shows how this structure is captured using super-operations for a 3x3 instance. Each shaded region corresponds to one iteration of the outer loop (one row computation).

The blue edges at the top of each region represent admission dependencies . They determine when a row-level super-operation may begin. Once admitted, the internal graph becomes active: the multiply and add operations that form the dot product execute as soon as their inputs are available, independently of other rows.

The orange edges at the bottom represent retirement dependencies . A super-operation retires only after all internal operations complete and the final result (e.g., Z[i]) is produced. At that point, the result becomes visible and the resources associated with the region are released.

This separation is the key idea. The super-operation presents a simple interface to the rest of the program—admit as a unit, retire as a unit—while internally exposing fine-grained parallelism. As a result, execution can be organized hierarchically: ordering and visibility are enforced at region boundaries, while parallelism is exploited within regions.

In practice, super-operations let us choose the level at which we enforce ordering and visibility. In DMV, we group work at the row level: each row executes internally with full dataflow parallelism, while ordering is enforced only across rows. Different groupings would expose different tradeoffs between parallelism and the amount of live state that must be maintained.

At the highest level, the program itself is a super-operation: it is admitted at start and retires at completion. All internal structure can be understood as nested super-operations, each defining a local unit of execution and visibility.

Visibility, Speculation, and Publication

The program separates execution from publication by treating retirement as the point at which results become globally observable. Correctness is enforced by constraining publication rather than execution: memory ordering, for example, is captured through retire–>retire constraints, ensuring results appear in the required order even if they execute out of order. This decoupling allows execution to proceed ahead of full knowledge, with correctness checked only at publication.

Under this view, speculation is simply execution prior to retirement. Operations may execute before all dependencies or control conditions are resolved, carrying uncertainty as part of their live state, as long as these uncertainties are resolved before results become visible. This shifts correctness enforcement to publication, allowing forward progress without stalling on unresolved conditions.

This motivates delaying and structuring publication. By organizing retirement into scoped or distributed domains, the system avoids a single global visibility bottleneck. Stateflow makes this explicit: the program graph encodes publication constraints through retirement edges and scope boundaries, defining when results become visible and where their effects propagate, enabling localized synchronization, relaxed consistency, and containment of speculative effects.

Result: A Uniform Design Space

Stateflow reveals that diverse architectures are not fundamentally different mechanisms, but instances of a small number of policy choices governing admission, firing, and retirement. In Table 1, we show how a range of architectures can be expressed as distinct combinations of these policies.

Prior Architecture	Exposure Granularity	Admission Policy	Firing Policy	Retirement Policy	Bottleneck
Pure Von Neumann (vN)	Instruction	CF	CF	CF (In order)	Control-flow admission
Out-of-Order (OoO) vN	Instruction	Relaxed CF	DF	CF (In order)	Retirement serialization
OoO w/ OoO Retire 1	Instruction	Relaxed CF	DF	DF (As-ready)	State capacity
Pure Dataflow	Instruction	DF	DF	DF (As-ready)	State capacity
vN w/ Threads	Thread / Instruction	Relaxed CF	CF (outer), CF (inner)	CF (Join/async)	Control-flow admission
OoO w/ Threads	Thread / Instruction	Relaxed CF	CF (outer), DF (inner)	CF (Join/async)	Retirement serialization
WaveScalar 2	Wave / Instruction	Relaxed CF	DF	CF (Wave-ordered)	Retirement serialization
Tyr 3	Region / Instruction	Per-region Relaxed CF	DF	DF (Independent)	State capacity

Table 1: Architectures expressed using the Stateflow model, including dominant bottleneck.

To compare performance across architectures, we instantiate Stateflow as a cross-paradigm simulator, following a limit study methodology ⁴ , ⁵ , ⁶ . Given a program trace, we evaluate each policy configuration in terms of runtime and peak live state. Figure 1 plots runtime versus live state, exposing the achievable performance–state tradeoff.

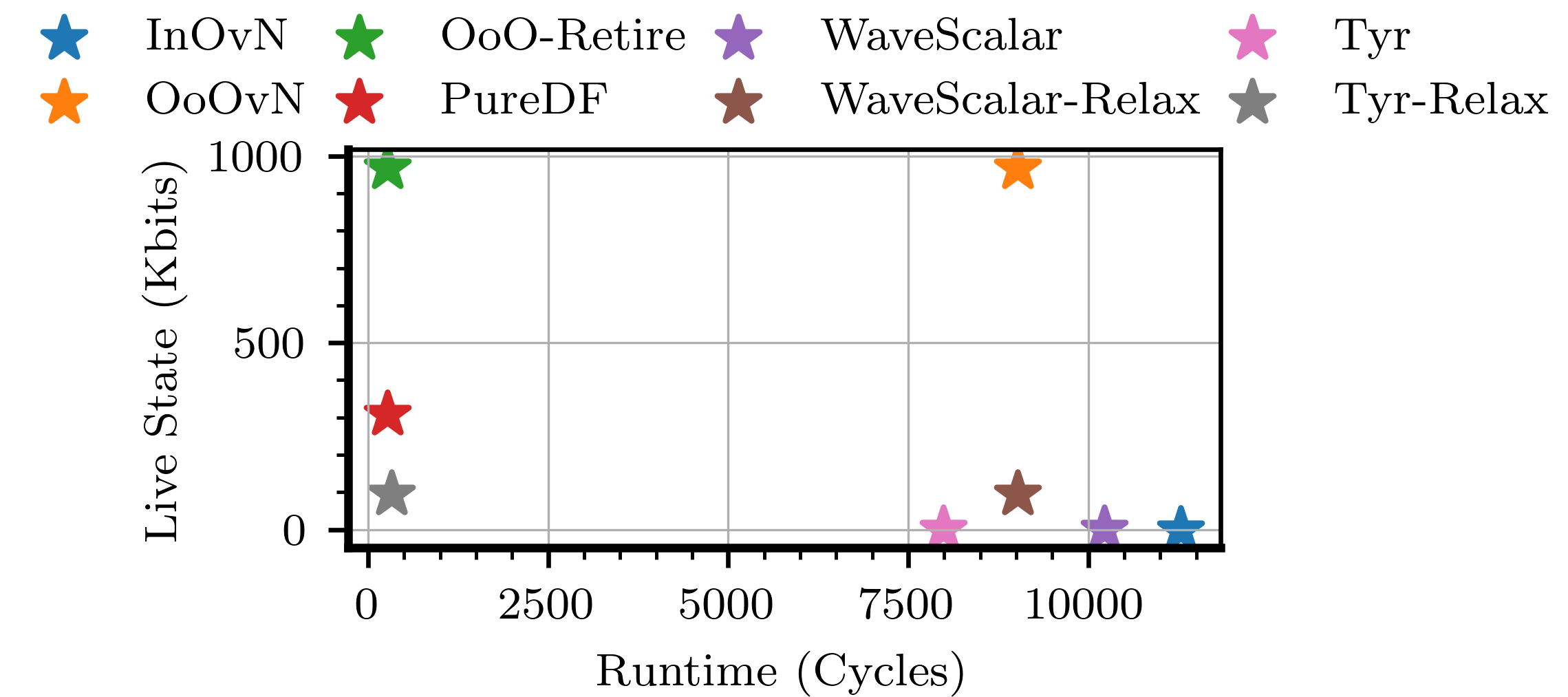

The figure reveals a clear structure. Architectures differ in how much work they allow to be live at once, as determined by their admission, execution, and retirement policies. Allowing more live work generally reduces runtime, but requires substantially more state, with diminishing returns as systems approach ideal performance. Architectures differ in where they appear in this tradeoff space—some lie near ideal, while others incur excess state without proportional performance gains, reflecting policy inefficiency rather than fundamental limits imposed by the program.

More over, the figure demonstrates that exposing more work does not simply improve performance. Instead, it changes what limits performance. As architectures permit more concurrent work, the dominant bottleneck shifts in a consistent progression: from admission, to retirement, to state capacity.

This behaviour is visible across different execution styles, including out-of-order, dataflow, and scoped execution models. In out-of-order processors, allowing more work to be live through relaxed admission improves performance initially, but quickly shifts the bottleneck to retirement, where results must still commit in order. In particular, the retirement bottleneck in out-of-order processors arises directly from enforcing correctness through ordered visibility of results. In dataflow architectures, removing ordered retirement allows operations to complete as soon as they are ready, but requires maintaining a much larger volume of in-flight state, making performance limited by the capacity of live state.

Scoped execution models mitigate this effect by limiting how widely results must be made visible. Instead of requiring all operations to commit in a single global order, they group work into smaller regions that can complete locally. For example, systems such as WaveScalar or Tyr allow operations within a region to retire once their local dependencies are satisfied, without waiting for unrelated work elsewhere in the program. This reduces global serialization incurred by OoO while avoiding the need to keep all in-flight work live at once like dataflow.

Allowing more work to be live can therefore improve performance, but often shifts the bottleneck to retirement or increases the state required to sustain execution. Designs such as scoped execution partially mitigate this effect by localizing publication, reducing global serialization while avoiding unnecessary growth in live state.

This pattern appears across all of the architectures we evaluate in Table 1. Different policy choices tend to run into different limits, and these limits follow directly from how the system is designed. For example, restricting admission limits how much work can enter the machine, while enforcing ordered completion limits how quickly results can be made visible. These bottlenecks arise from the structure of the policies themselves, demonstrating how architectural design limits performance.

Taken together, these results show that performance is governed by a tradeoff between parallelism and live state, mediated by admission, retirement, and resource capacity. Architectural design does not remove these constraints—it determines whether performance is limited by admission, retirement, or state, and thus where the bottleneck lies. Computer architecture is therefore fundamentally the design of systems that regulate the exposure and lifetime of live computational state.

Conclusion

This work introduced regulated execution and Stateflow, a framework for understanding execution as the management of live work under finite resources. Under this view, architectures that appear very different can be described using the same underlying structure, defined by how they admit work, execute it, and make results visible.

By placing these designs within a common framework, Stateflow reveals that architectural differences are not fundamentally about distinct mechanisms, but about different choices in how work is managed as it moves through the system. This provides a unified way to compare execution models, explain their behaviour, and reason about the tradeoffs they make.

Acknowledgements

This work was done in collaboration with Martha Kim, Olivia Hsu, and Nathan Beckmann. I want to thank my Writing Skills committee, Justine Sherry, Phil Gibbons, and Myra Dotzel, for their suggestions and feedback on this post. I also want to thank Jonathan Balkind for providing invaluable feedback on this work.
