The Life Cycle of a Thread

Now that you've seen how to give a thread something to do, we'll review some details that were glossed over in the previous section. In particular, we look at the life cycle of a thread: how to create and start a thread, some of the special things it can do while it's running, and how to stop it.

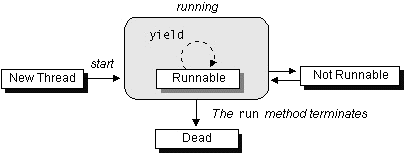

The following diagram shows the states that a Java thread can be in during its life. It also illustrates which method calls cause a transition to another state. This figure is not a complete finite state diagram, but rather an overview of the more interesting and common facets of a thread's life. The remainder of this section uses the Clock applet previously introduced to discuss a thread's life cycle in terms of its state.

Creating a Thread

The application in which an applet is running calls the applet's start method when the user visits the applet's page. The Clock applet creates a Thread, clockThread, in its start with the bold code shown here:
public void start() {
    if (clockThread == null) {
        clockThread = new Thread(this, "Clock");
        clockThread.start();
    }
}
After the bold statement has been executed, clockThread is in the New Thread state. When a thread is a New Thread, it is merely an empty Thread object; no system resources have been allocated for it yet. When a thread is in this state, you can only start the thread. Calling any method besides start when a thread is in this state makes no sense and causes an IllegalThreadStateException. (In fact, the runtime system throws an IllegalThreadStateException any time a method is called on a thread and that thread's state does not allow for that method call.)

Notice that this--the Clock instance-- is the first argument to the thread constructor. The first argument to this thread constructor must implement the Runnable interface and becomes the thread's target. The clock thread gets its run method from its target Runnable object--in this case, the Clock instance. The second argument is just a name for the thread.

Starting a Thread

Now consider the next line of code in Clock's start method shown here in bold:
public void start() {
    if (clockThread == null) {
        clockThread = new Thread(this, "Clock");
        clockThread.start();
    }
}
The start method creates the system resources necessary to run the thread, schedules the thread to run, and calls the thread's run method. ClockThread's run method is the one defined in the Clock class.

After the start method has returned, the thread is "running". Yet, it's somewhat more complex than that. As the previous figure shows, a thread that has been started is actually in the Runnable state. Many computers have a single processor, thus making it impossible to run all "running" threads at the same time. The Java runtime system must implement a scheduling scheme that shares the processor between all "running" threads. (See Understanding Thread Priority for more information about scheduling.) So at any given time, a "running" thread actually may be waiting for its turn in the CPU.

Here's another look at Clock's run method:

public void run() {
   Thread myThread = Thread.currentThread();
   while (clockThread == myThread) {
        repaint();
        try {
            Thread.sleep(1000);
        } catch (InterruptedException e){
            // the VM doesn't want us to sleep anymore,
            // so get back to work
        }
    }
}
Clock's run method loops while the condition clockThread == myThread is true. This exit condition is explained in more detail in Stopping a Thread. However, for now, know that it allows the thread, and thus the applet, to exit gracefully.

Within the loop, the applet repaints itself and then tells the thread to sleep for one second (1000 milliseconds). An applet's repaint method ultimately calls the applet's paint method, which does the actual update of the applet's display area. The Clock paint method gets the current time, formats, and displays it:

public void paint(Graphics g) {
    // get the time and convert it to a date
    Calendar cal = Calendar.getInstance();
    Date date = cal.getTime();
    // format it and display it
    DateFormat dateFormatter = DateFormat.getTimeInstance();
    g.drawString(dateFormatter.format(date), 5, 10);
}

Making a Thread Not Runnable

A thread becomes Not Runnable when one of these events occurs: The clockThread in the Clock applet becomes Not Runnable when the run method calls sleep on the current thread:
public void run() {
    Thread myThread = Thread.currentThread();
    while (clockThread == myThread) {
        repaint();
        try {
            Thread.sleep(1000);
        } catch (InterruptedException e){
            // the VM doesn't want us to sleep anymore,
            // so get back to work
        }
    }
}
During the second that the clockThread is asleep, the thread does not run, even if the processor becomes available. After the second has elapsed, the thread becomes Runnable again and, if the processor becomes available, the thread begins running again.

For each entrance into the Not Runnable state, there is a specific and distinct escape route that returns the thread to the Runnable state. An escape route works only for its corresponding entrance. For example, if a thread has been put to sleep, then the specified number of milliseconds must elapse before the thread becomes Runnable again. The following list describes the escape route for every entrance into the Not Runnable state:

Stopping a Thread
A program doesn't stop a thread like it stops an applet (by calling a method). Rather, a thread arranges for its own death by having a run method that terminates naturally. For example, the while loop in this run method is a finite loop-- it will iterate 100 times and then exit:
public void run() {
    int i = 0;
    while (i < 100) {
        i++;
        System.out.println("i = " + i);
    }
}
A thread with this run method dies naturally when the loop completes and the run method exits.

Let's look at how the Clock applet thread arranges for its own death. You might want to use this technique with your applets. Recall Clock's run method:

public void run() {
    Thread myThread = Thread.currentThread();
    while (clockThread == myThread) {
        repaint();
        try {
            Thread.sleep(1000);
        } catch (InterruptedException e){
            // the VM doesn't want us to sleep anymore,
            // so get back to work
        }
    }
}
The exit condition for this run method is the exit condition for the while loop because there is no code after the while loop:
while (clockThread == myThread) {
This condition indicates that the loop will exit when the currently exiting thread is not equal to clockThread. When would this ever be the case?

When you leave the page, the application in which the applet is running calls the applet's stop method. This method then sets the clockThread to null, thereby telling the main loop in the run method to terminate:

public void stop() {    // applets' stop method
    clockThread = null;
}
If you revisit the page, the start method is called again and the clock starts up again with a new thread. Even if you stop and start the applet faster than one iteration of the loop, clockThread will be a different thread than myThread and the loop will still terminate.

The isAlive Method

A final word about thread state: The API for the Thread class includes a method called isAlive. The isAlive method returns true if the thread has been started and not stopped. If the isAlive method returns false, you know that the thread either is a New Thread or is Dead. If the isAlive method returns true, you know that the thread is either Runnable or Not Runnable. You cannot differentiate between a New Thread or a Dead thread. Nor can you differentiate between a Runnable thread and a Not Runnable thread.
