Grid
The Grid class is used to create the display that you will see.
The Grid class has the following methods that you will need:
public Grid(int numRows, int numCols)
A constructor that creates a new Grid with the number of rows and columns
given in the respective parameters.
public int getNumRows()
An accessor that returns the number of rows in this grid.
public int getNumCols()
An accessor that returns the number of columns in this grid.
public Color setColor(Location l, Color c)
A mutator that sets the color of this grid in location l to color c as given
by the parameters.
public Color getColor(Location l)
An accessor that gets the color of this grid in location l.
public int setTitle(String title)
A mutator that displays the title given in the parameter in the title bar
for this grid.
public static void pause(int milliseconds)
A method that pauses the display of the grid for the number of
milliseconds given in the parameter.
public Location checkLastLocationClicked()
An accessor that returns the last location clicked on this grid by the
user. This method returns null if no location has been clicked since the
last time this method was called.
public int checkLastKeyPressed()
An accessor that returns the integer code for
last key pressed on the keyboard by the user.
This method returns 0 if no key has been pressed since the
last time this method was called.
Program Requirements
Open the class named LightsOutGame in this project. This class
contains your main method to run the game along with additional static
methods that you will write
to simplify your main method. There are a few static methods already
written for you.
Follow the instructions below to
build your game, step by step.
-
Write a main method that first asks the user for the size of the game
(i.e. the number of rows/columns for the game). The minimum size is 5 (for
a 5 × 5 game). If the user enters an integer lower than 5, ask again
until the user finally inputs a valid value. Using this size, initialize
two variables, one variable for a Grid
object that you will use to display the current state of the lights, and
one variable for a two-dimensional array of boolean values representing
the current state of each light (true will represent "on" and false will
represent "off"). The initial values stored in the boolean 2D array
should all be false.
Call the supplied method displayGrid with your grid and 2D
boolean
array to draw the game display on your screen. Note that this
method sets
the color of each grid cell (at location i,j) to the color based on the
value in your boolean 2D array. If the boolean array value is true
(meaning the light is on), the color is set to yellow (255,255,0). If the
boolean array value is false (meaning the light is off), the color is set
to black (0,0,0).

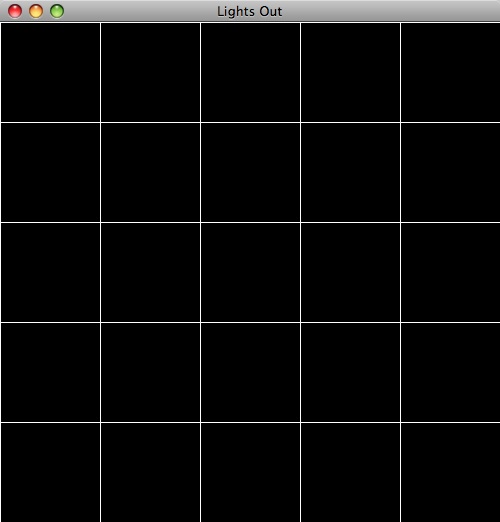

Run the program to see if you can get a 5 × 5 grid of lights, all
off.
-
Write a method generateNewGame that takes a boolean 2D array as
its parameter and initializes each cell of the 2D array
randomly to true or false. The
signature for this method is:
public static void generateNewGame(boolean[][] lightArray)

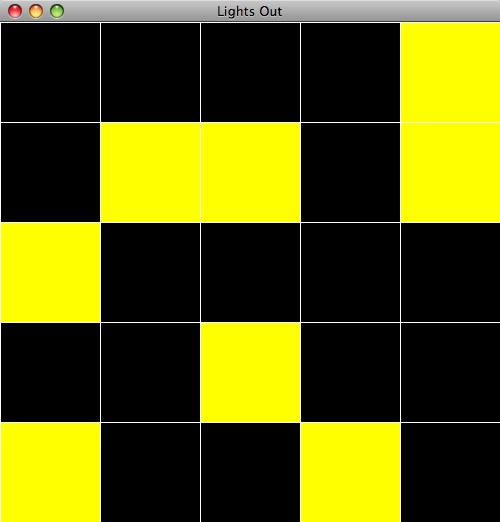

Call this method from your main method and then display the grid again.
This time you should see a random set of lights turned on. Run the program
several times to make sure you get a random set of lights and that your
program works correctly for different game sizes besides 5 × 5.
-
Write a method toggleLights that has the following signature:
public static void toggleLights(boolean[][] lightArray, int row, int col)
This method takes the two-dimensional boolean array representing the
lights and a row and column and toggles the light in the 2D array at the
given row and column. (Toggle means to flip its state from off to on, or
on to off.) In addition, this method should toggle this light's neighbors
(above, below, left and right). Note that you must check to make sure
there is a neighbor in each direction before you toggle it so you don't
cause an exception.
-
In your main method, create a boolean variable gameOver
to flag when the game
is over. Set this variable initially to false. (When the game is over, you
will set it to true.) Now implement the following algorithm:
While the game is not over, do the following:
Get the location where the user last clicked on the grid.
If the user clicked since the last time you checked:
Get the row and column of this location where the user clicked, and
toggle the light at this row and column along with its neighbors.
In the algorithm above, call the toggleLights
method you wrote to do the
work of toggling the light and its neighbors. Test your game now, and you
should see a random set of lights first, then as you click, you should see
the selected
light and its neighbors toggle. Be sure to test
the lights around the edge of the
game to make sure your program tests for neighbors correctly and does not
crash.

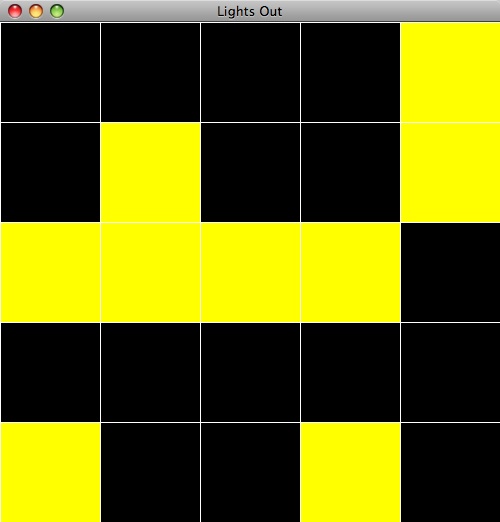

A toggling sequence: clicking the middle cell first, then clicking the
top right cell next.
-
Write a method checkForGameWin that returns true if the user wins
the game since all lights are off, or false otherwise. Use the following
signature for your method:
public static boolean checkGameForWin(boolean[][] lightArray)
This method requires one parameter representing the boolean 2D array that
has the current state of the lights.
Once you have this method done, call this method from your main method
after lights are toggled (i.e. inside your game loop)
to see if the user wins. Depending on what this method returns, set your
boolean variable gameOver to true or false accordingly.
Now test your program to see if the game ends when you turn off all lights
of the grid. A helpful suggestion is to output the statement "YOU WIN!"
after your game loop ends so you know the game is over.
NOTE: Try to come up with a strategy for winning the game.
Are all randomly generated games winnable?
-
To make the game ending more exciting, write another method
toggleAllLights with the following signature:
public static void toggleAllLights(boolean[][] lightArray)
This method toggles all of the lights in the given light array.
If the user wins the game, in your main method call this method twice,
pausing 100 milliseconds in between calls to make the grid flash once. Put
this code in a loop to make the grid flash the same number of times as the
size of the grid. For example, if the grid is 5 × 5, then if the
player wins, the grid should flash 5 times.
Developing and Testing your Program
Note how the program is developed. This assignment is meant to show you
how to take a problem like this game and break it down into smaller parts,
working on simpler parts to build the complex program. As you follow the
instructions and test your program at each stage, think about what you've
done so far and look at the overall structure of the program. Do NOT
write all of the code first and then test it. Most likely, it will not
work, and this is not what real programmers do. People who write programs
for their job will write in stages as you see here and test as they go
along.
Documentation & Programming Style
As usual, your code should be well documented and should demonstrate
proper Java formatting style. Be sure to name your variables
appropriately and indent properly.
Hand-in Instructions
See the course website for instructions on how to hand in your program.
Please zip your project folder that is created in Eclipse. This makes it
easier for us to grade your work.
Remember that the work you submit must be your own. Also, late hand-ins
are not accepted. Please plan ahead and submit early to avoid server
overload at the deadline. The deadline is based on the server's clock, not
your clock. Please do not email your code to your instructor
or course assistant as your official hand-in; these will not be graded.
