15-121 Homework 9: Trees

Note: You will be graded in part on your coding style. Your code should be easy to read, well organized, and concise. You should avoid duplicate code.

Background: The Code

Right-click to download hw9.zip. Inside you'll find:

TreeNode.java - A generic TreeNode<E> class with public fields. Open this file and familiarize yourself with it.

TreeDisplay.java - A user interface for displaying the contents of a binary tree. Use this class to test your code. For example:

TreeDisplay<Integer> display = new TreeDisplay<Integer>();
//creates a new window for showing a binary tree of integer values

display.setRoot(t);
//shows the contents of t in the window,
//where t refers to some binary tree of integer values

HW9.java - Contains the 10 static methods that you will be completing. All of the code you write for this assignment should appear in this file. Note that a number of these methods are generic static methods. For example, to declare a static method that determines if a tree contains a given value, we might write the following signature:
public static <E> boolean contains(TreeNode<E> t, E obj)
The return value of this method is boolean--not E. The <E> near the beginning allows us to refer to the type E throughout the method. This let's us use the same contains method to determine if a tree of integers contains a particular integer, and to determine if a tree of strings contains a particular string, and so on.

Exercises

These exercises can be completed in any order. You should not expect to receive partial credit for methods that do not always work correctly, so please be sure to test your code thoroughly.

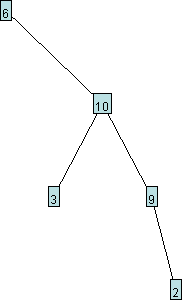

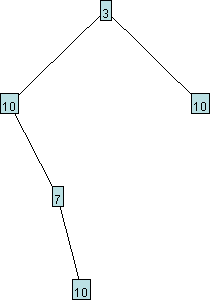

Complete the randomTree method, which should build a randomly shaped tree of integers, with the specified number of nodes, where each node contains a random integer in the range from 1 to n inclusive. For example, the following trees were both created by calling randomTree(5, 10):

For each node, your method should randomly choose how many of the nodes in the tree should appear to the left of the current node, and how many should appear to the right.

Complete the replace method, which should replace all occurrences of oldValue with newValue in the given tree. This method should work for various data types, including strings, so be sure to use the proper test for equality. Do not create any new nodes.

Complete the countNodesAtDepth method, which should return the number of nodes at the given depth in the given tree. The root node has a depth of 0. In the following tree, there are 2 nodes at depth 1 ("2" and "4"), 3 nodes at depth 2 ("10", "3", and "10"), 1 node at depth 4 ("8"), and no nodes at depth 6.

Complete the allSame method, which should return true if and only if every value in the tree is the same. This method should work for various data types, including strings, so be sure to use the proper test for equality. For example, allSame should return true for a tree like the following, and for any tree with fewer than 2 elements:

Complete the leafList method, which should return a List of the data values that appear in the leaves of the given tree. For the following tree, leafList should return the list [9, 3, 7], in that order.

Complete the reflect method, which should modify the given tree so that it is reflected horizontally. For example, if myTree originally refers to the following tree

and we now call reflect(myTree), then myTree should now appear as follows:

Your method should not create any new nodes.

Complete the condense method, which should remove all nodes that have exactly one child. This method should modify the tree passed to it, and return a reference to the resulting tree. For example, if myTree originally refers to the following tree

and we now call condense(myTree), then the method will return a reference to the root of the condensed tree, which should appear as follows:

Your method should not create any new nodes.

We'd like to be able to save the contents of a tree to a text file. Suppose we want to save any of the following trees to a file.

We might be tempted to simply follow a preorder traversal and output the sequence of visited nodes to a file. Unfortunately, however, every one of the trees shown above would result in the same preorder traversal: 1, 2, 3. Therefore, if we stored 1, 2, 3 in a file, we would not have enough information to recover the original shape of the tree. One solution to our problem is to output an extra marker every time we reach a null. We'll use $ for this purpose. Below are several simple examples of a tree and the text file produced when that tree is saved to a file.

Tree Text File

$

1
$
$

1
2
$
$
$

1
$
2
$
$

Complete the save method, which should save the given tree to the file with the given name, in the format specified above. In case you are unfamiliar with file saving in Java, here is some sample code for saving some text to a file:
```
PrintWriter out = new PrintWriter(new FileWriter("somefile.txt"));
out.println("some");
out.println("text");
out.close();
```
Complete the load method, which takes in the name of a file in the format shown above, and returns the tree represented by that file. In case you are unfamiliar with file loading in Java, here is some sample code for loading some text from a file:
```
Scanner in = new Scanner(new File("somefile.txt"));
String firstLine = in.nextLine();
String secondLine = in.nextLine();
in.close();
```

In this exercise, we'll be programming the computer to play a game of 20 Questions. You will think of a person or thing, and then you will call the twentyQuestions method, which will direct the computer to attempt to guess what you are thinking of by asking you a series of yes/no questions. (Traditionally, the computer would be limited to 20 questions, but we will ignore that limit for this exercise.) In order for the computer to ask semi-intelligent questions, it must have some knowledge of the world. In this exercise, that knowledge will take the form of a decision tree.
Our decision tree will contain one or more strings, and every node will have zero or two children. The strings in the leaves are the people and things that the computer knows about. The strings in the other nodes are questions the computer can ask to help identify which person or thing you are thinking of. All of the people/things in the left subtree of a question correspond to an answer of yes, while the people/things in the right subtree correspond to an answer of no. Consider the following decision tree:

This tree has 3 people/things: Margaret, Dave, and a fish. And it has 2 questions: Is it human? and Is it tall? All of the humans appear to the left of "human", and all of the non-humans appear to the right. Likewise, all of the tall humans appear to the left of both "human" and "tall".
The following transcript shows the result of a call to twentyQuestions using the decision tree shown above. The bold text is printed to the console by the twentyQuestions method, and the yes/no answers are typed into the console by the user.
Is it human? yes Is it tall? no Is it Dave? yes I win!
On the other hand, if the computer's final guess is incorrect, the computer will ask for the correct answer and a characteristic to distinguish that correct answer from the computer's incorrect answer, and will modify the decision tree to reflect this new knowledge. This is illustrated in the transcript below for a different call to twentyQuestions, using the same decision tree:
Is it human? no Is it a fish? no I give up. Who/what is it? a piano What distinguishes a piano from a fish? a piano is something you can tune
After this call to twentyQuestions, the decision tree will now appear as follows:

Go ahead and complete the twentyQuestions method. The printed text should be formatted exactly as shown in the sample transcripts above. When new knowledge must be added to the tree, your code should create only two nodes.
Your code should work even if there is only one node in the tree.
The static variable userInput has been initialized to refer to a Scanner for reading user input from the console. The following line of code will allow the user to enter a line of text and store the result in s:
String s = userInput.nextLine();
Optional: When you have finished this, you might consider creating a little game for yourself, where the computer loads its knowledge from a file, and plays multiple rounds of twenty questions, saving the modified tree whenever it learns something new.

Tree	Text File
	$
	1 $ $
	1 2 $ $ $
	1 $ 2 $ $

Submitting Your Work

When you have completed this assignment and tested your code thoroughly, create a .zip file with your work (including HW9.java). Our online handin system only accepts .zip files. (To create a .zip file on a lab computer, right-click on the folder with your code and choose "create archive", making sure to choose ".zip" from the dropdown box on the upper right of the dialog.)

Next, click here to submit your .zip file to the online handin system. (You may need to click to add an exception, confirm a certificate, etc.) The handin system may delete your .class files, other backup files, etc. This is fine. The important thing is that it accepts the .java files containing your work. Click to verify your submission, and make sure that you see those files.

Make sure to keep a copy of your work just in case!
