Joints V4.0¶
Motors & Kinematics | Links V4.0 | Joints V4.0 | Masses V4.0

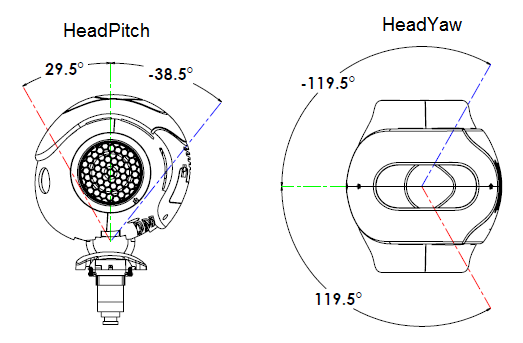

Head joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| HeadYaw | Head joint twist (Z) | -119.5 to 119.5 | -2.0857 to 2.0857 |
| HeadPitch | Head joint front and back (Y) | -38.5 to 29.5 | -0.6720 to 0.5149 |
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/HeadPitch/Position/Actuator/Value
Device/SubDeviceList/HeadYaw/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/HeadPitch/Position/Sensor/Value
Device/SubDeviceList/HeadYaw/Position/Sensor/Value

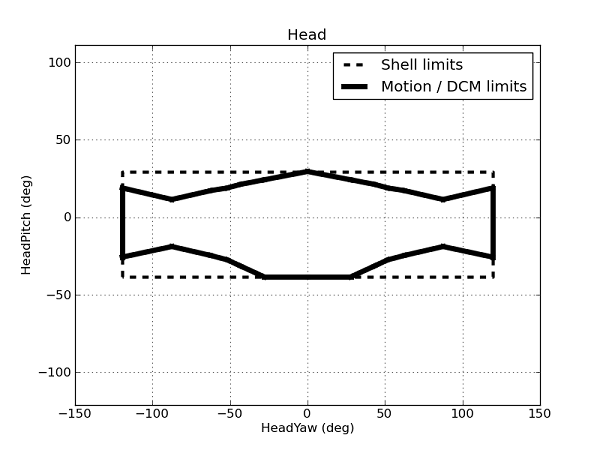

Due to collision with NAO shell, the head yaw and pitch are limited.
| HeadYaw (°) | HeadPitch - (°) | HeadPitch + (°) |
|---|---|---|
| -119.52 | -25.73 | 18.91 |
| -87.49 | -18.91 | 11.46 |
| -62.45 | -24.64 | 17.19 |
| -51.74 | -27.50 | 18.91 |
| -43.32 | -31.40 | 21.20 |
| -27.85 | -38.50 | 24.18 |
| 0.0 | -38.50 | 29.51 |
| 27.85 | -38.50 | 24.18 |
| 43.32 | -31.40 | 21.20 |
| 51.74 | -27.50 | 18.91 |
| 62.45 | -24.64 | 17.19 |
| 87.49 | -18.91 | 11.46 |
| 119.52 | -25.73 | 18.91 |

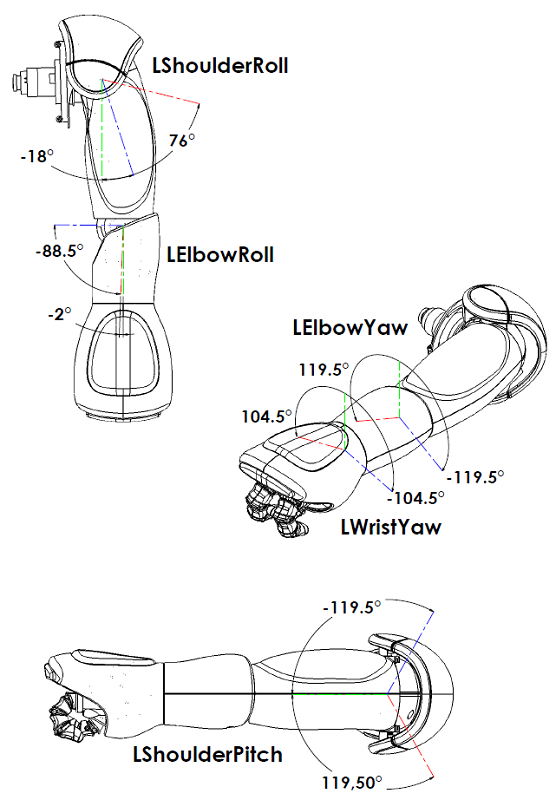

Left Arm joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| LShoulderPitch | Left shoulder joint front and back (Y) | -119.5 to 119.5 | -2.0857 to 2.0857 |
| LShoulderRoll | Left shoulder joint right and left (Z) | -18 to 76 | -0.3142 to 1.3265 |
| LElbowYaw | Left shoulder joint twist (X) | -119.5 to 119.5 | -2.0857 to 2.0857 |
| LElbowRoll | Left elbow joint (Z) | -88.5 to -2 | 1.5446 to 0.0349 |
| LWristYaw | Left wrist joint (X) | -104.5 to 104.5 | -1.8238 to 1.8238 |
| LHand | Left hand | Open and Close | Open and Close |
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/LShoulderPitch/Position/Actuator/Value
Device/SubDeviceList/LShoulderRoll/Position/Actuator/Value
Device/SubDeviceList/LElbowYaw/Position/Actuator/Value
Device/SubDeviceList/LWristYaw/Position/Actuator/Value
Device/SubDeviceList/LHand/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/LShoulderPitch/Position/Sensor/Value
Device/SubDeviceList/LShoulderRoll/Position/Sensor/Value
Device/SubDeviceList/LElbowYaw/Position/Sensor/Value
Device/SubDeviceList/LWristYaw/Position/Sensor/Value
Device/SubDeviceList/LHand/Position/Sensor/Value
Right Arm joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| RShoulderPitch | Right shoulder joint front and back (Y) | -119.5 to 119.5 | -2.0857 to 2.0857 |
| RShoulderRoll | Right shoulder joint right and left (Z) | -76 to 18 | -1.3265 to 0.3142 |
| RElbowYaw | Right shoulder joint twist (X) | -119.5 to 119.5 | -2.0857 to 2.0857 |
| RElbowRoll | Right elbow joint (Z) | 2 to 88.5 | 0.0349 to 1.5446 |
| RWristYaw | Right wrist joint (X) | -104.5 to 104.5 | -1.8238 to 1.8238 |
| RHand | Right hand | Open and Close | Open and Close |
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/RShoulderPitch/Position/Actuator/Value
Device/SubDeviceList/RShoulderRoll/Position/Actuator/Value
Device/SubDeviceList/RElbowYaw/Position/Actuator/Value
Device/SubDeviceList/RWristYaw/Position/Actuator/Value
Device/SubDeviceList/RHand/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/RShoulderPitch/Position/Sensor/Value
Device/SubDeviceList/RShoulderRoll/Position/Sensor/Value
Device/SubDeviceList/RElbowYaw/Position/Sensor/Value
Device/SubDeviceList/RWristYaw/Position/Sensor/Value
Device/SubDeviceList/RHand/Position/Sensor/Value

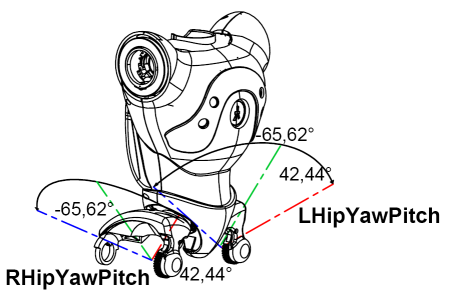

Pelvis joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| LHipYawPitch* | Left hip joint twist (Y-Z 45°) | -65.62 to 42.44 | -1.145303 to 0.740810 |
| RHipYawPitch* | Right hip joint twist (Y-Z 45°) | -65.62 to 42.44 | -1.145303 to 0.740810 |
Note
LHipYawPitch and RHipYawPitch are physically just one motor so they cannot be controlled independently.
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/LHipYawPitch/Position/Actuator/Value
Device/SubDeviceList/RHipYawPitch/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/LHipYawPitch/Position/Sensor/Value
Device/SubDeviceList/RHipYawPitch/Position/Sensor/Value

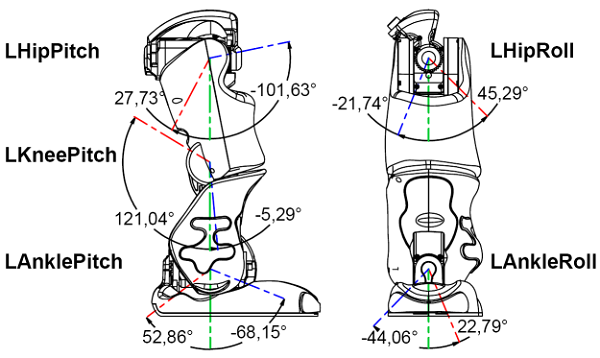

Left Leg joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| LHipRoll | Left hip joint right and left (X) | -21.74 to 45.29 | -0.379472 to 0.790477 |
| LHipPitch | Left hip joint front and back (Y) | -101.63 to 27.73 | -1.773912 to 0.484090 |
| LKneePitch | Left knee joint (Y) | -5.29 to 121.04 | -0.092346 to 2.112528 |
| LAnklePitch | Left ankle joint front and back (Y) | -68.15 to 52.86 | -1.189516 to 0.922747 |
| LAnkleRoll | Left ankle joint right and left (X) | -44.06 to 22.79 | -0.769001 to 0.397880 |
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/LHipRoll/Position/Actuator/Value
Device/SubDeviceList/LHipPitch/Position/Actuator/Value
Device/SubDeviceList/LKneePitch/Position/Actuator/Value
Device/SubDeviceList/LAnklePitch/Position/Actuator/Value
Device/SubDeviceList/LAnkleRoll/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/LHipRoll/Position/Sensor/Value
Device/SubDeviceList/LHipPitch/Position/Sensor/Value
Device/SubDeviceList/LKneePitch/Position/Sensor/Value
Device/SubDeviceList/LAnklePitch/Position/Sensor/Value
Device/SubDeviceList/LAnkleRoll/Position/Sensor/Value

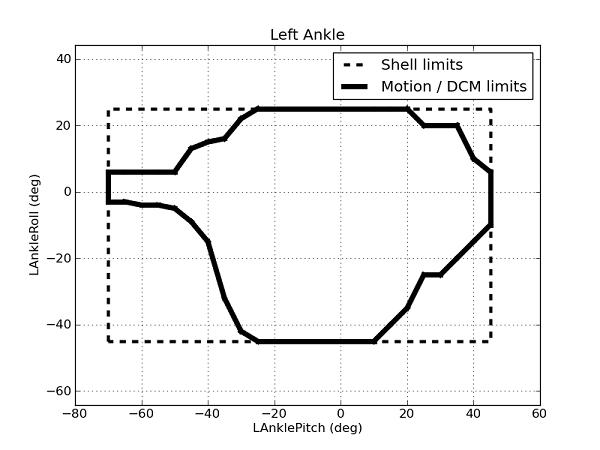

Due to collision with NAO shell, the ankle pitch and roll are limited.
| LAnklePitch (°) | LAnkleRoll - (°) | LAnkleRoll + (°) |
|---|---|---|
| -70.0 | -03.0 | 06.0 |
| -65.0 | -03.0 | 06.0 |
| -60.0 | -04.0 | 06.0 |
| -55.0 | -04.0 | 06.0 |
| -50.0 | -05.0 | 06.0 |
| -45.0 | -09.0 | 13.0 |
| -40.0 | -15.0 | 15.0 |
| -35.0 | -32.0 | 16.0 |
| -30.0 | -42.0 | 22.0 |
| -25.0 | -45.0 | 25.0 |
| 10.0 | -45.0 | 25.0 |
| 15.0 | -40.0 | 25.0 |
| 20.0 | -35.0 | 25.0 |
| 25.0 | -25.0 | 20.0 |
| 30.0 | -25.0 | 20.0 |
| 35.0 | -20.0 | 20.0 |
| 40.0 | -15.0 | 10.0 |
| 45.0 | -10.0 | 06.0 |
Right Leg joints¶
| Joint name | Motion | Range (degrees) | Range (radians) |
|---|---|---|---|
| RHipRoll | Right hip joint right and left (X) | -42.30 to 23.76 | -0.738321 to 0.414754 |
| RHipPitch | Right hip joint front and back (Y) | -101.54 to 27.82 | -1.772308 to 0.485624 |
| RKneePitch | Right knee joint (Y) | -5.90 to 121.47 | -0.103083 to 2.120198 |
| RAnklePitch | Right ankle joint front and back (Y) | -67.97 to 53.40 | -1.186448 to 0.932056 |
| RAnkleRoll | Right ankle joint right and left (X) | -22.27 to 45.03 | -0.388676 to 0.785875 |
Access value by using ALMemory key name
Command(radians):
Device/SubDeviceList/RHipRoll/Position/Actuator/Value
Device/SubDeviceList/RHipPitch/Position/Actuator/Value
Device/SubDeviceList/RKneePitch/Position/Actuator/Value
Device/SubDeviceList/RAnklePitch/Position/Actuator/Value
Device/SubDeviceList/RAnkleRoll/Position/Actuator/Value
Sensor(radians):
Device/SubDeviceList/RHipRoll/Position/Sensor/Value
Device/SubDeviceList/RHipPitch/Position/Sensor/Value
Device/SubDeviceList/RKneePitch/Position/Sensor/Value
Device/SubDeviceList/RAnklePitch/Position/Sensor/Value
Device/SubDeviceList/RAnkleRoll/Position/Sensor/Value

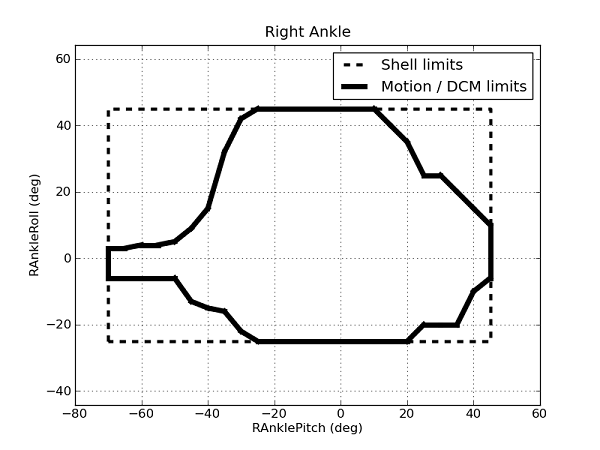

Due to collision with NAO shell, the ankle pitch and roll are limited.
| RAnklePitch (°) | RAnkleRoll - (°) | RAnkleRoll + (°) |
|---|---|---|
| -70.0 | -06.0 | 03.0 |
| -65.0 | -06.0 | 03.0 |
| -60.0 | -06.0 | 04.0 |
| -55.0 | -06.0 | 04.0 |
| -50.0 | -06.0 | 05.0 |
| -45.0 | -13.0 | 09.0 |
| -40.0 | -15.0 | 15.0 |
| -35.0 | -16.0 | 32.0 |
| -30.0 | -22.0 | 42.0 |
| -25.0 | -25.0 | 45.0 |
| 10.0 | -25.0 | 45.0 |
| 15.0 | -25.0 | 40.0 |
| 20.0 | -25.0 | 35.0 |
| 25.0 | -20.0 | 25.0 |
| 30.0 | -20.0 | 25.0 |
| 35.0 | -20.0 | 20.0 |
| 40.0 | -10.0 | 15.0 |
| 45.0 | -06.0 | 10.0 |
