Tele-Graffiti is a system allowing two or more users to communicate
remotely via hand-drawn sketches.

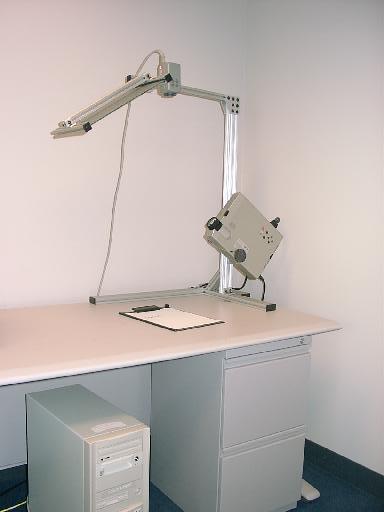

What one person writes at one site is captured using a video camera,
transmitted to the other site(s), and displayed there using an LCD
Such a system has a variety of applications in teleconferencing and remote education (See example).

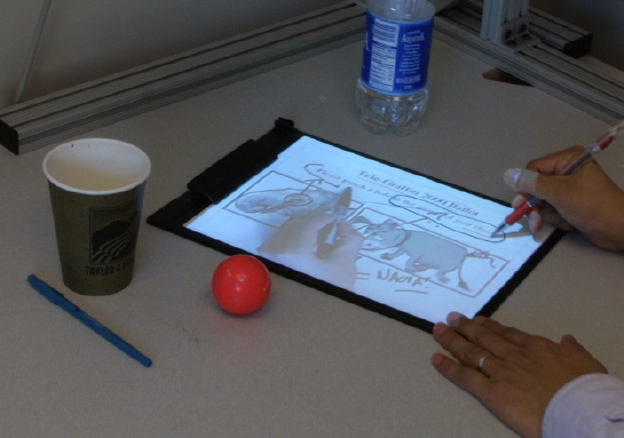

It also has a potential applications in human-computer interaction, using the paper as a combined display and input device (See example). The advantage of our system over other intelligent desktops ("Interacting with paper on the DigitalDesk" by P. Wellner, 1993) and white-boards ("MagicBoard: A Contribution to an Intelligent Office Environment" by D.Hall et al., 1999) is that the users are free to move the pieces of paper on which they are writing. In Tele-Graffiti, paper detection and tracking is based on real-time paper boundary detection. Naoya Takao, Simon Baker, Jianbo Shi, Iain Matthews, and Bart Nabbe are working together for this project.

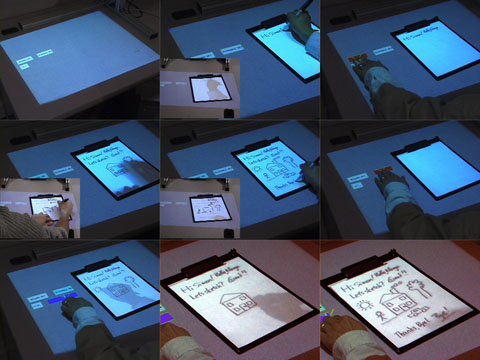

A demo movie introducing "Session Summarization and Replay" application featuring Tele-Graffiti's Hand-based User Interface (MPEG/16MB/No Audio)

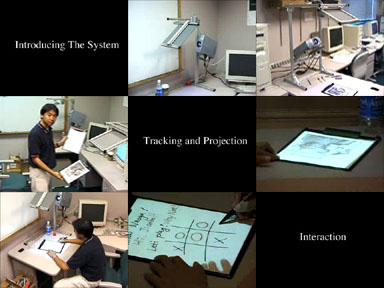

Pre-prepared demo movie (MPEG/9MB/No Audio)
