We deal with the problem of allocating resources to tasks under their various constraints of quality of service (QoS) requirements. Resources can be homogeneous (e.g., processors in multi-processor-based systems) or heterogeneous (e.g., processor, disk, network). This can be applied to distributed embedded, real-time and multimedia systems. Each task has various resource requirements along its each QoS dimension. For example, a video conferencing application can have the following QoS dimensions viz., frame rate, resolution, security etc. Our goal is to derive scalable near-optimal results on resource-allocations of QoS-aware tasks.



Resources                                                                            QoS

Summary of Q-RAM:

Our approach is based on Q-RAM (QoS-based Resource Allocation Model). It is an analytical approach for satisfying multiple quality-of-service dimensions in a resource-constrained environment. Using this model, available system resources can be apportioned across multiple applications such that the net utility that accrues to the end-users of those applications is maximized.

Application Context

Multimedia systems using audio and video streams can provide better audio/video quality at higher resolution and/or very low end-to-end delays. Tracking applications can track objects at higher precision and accuracy if radar tracks are generated and processed at higher frequencies. In many cases, computationally intensive algorithms can provide better results than their less-demanding counterparts. Even interactive systems can provide excellent response times to users if more processing and I/O resources are made available. Conversely, many applications can still prove to be useful and acceptable in practice even though the resources needed for their maximal performance are not available. For instance, a 30 frames/second video rate would be ideal for human viewing, but a smooth 12 fps video rate suffices under many conditions. The QoS-based Resource Allocation Model (Q-RAM) addresses the following question: "how does one allocate available resources to multiple concurrent applications?".

Q-RAM Novelty

The novelty of Q-RAM is that it allows multiple Quality of Service requirements such as timeliness, cryptography and reliable data delivery to be addressed and traded off against each other. It also allows resources to be traded off against each other to obtain the same level of QoS along a particular dimension. For example, video at a certain frame rate can be transmitted in raw form, consuming minimal CPU cycles and high network bandwidth. Alternatively, the video can be compressed, consuming significant CPU cycles but consuming less network bandwidth. Q-RAM provides a framework to make such resource and QoS tradeoffs across multiple applications. Both discrete and continuous QoS dimensions have been studied.

System Model

The QoS architecture [7] we consider is composed of a QoS specification interface, a quality trade-off specification model, and a unified QoS-based admission control and resource allocation model. The QoS specification allows multiple QoS requirements to be specified. The trade-off model allows the applications and the users to assign quantitative values called ``utilities'' to the different levels of service. Finally, a QoS resource manager makes resource allocations to those applications so as to maximize the global utility as a weighted sum of the utilities of the individual applications.

In [7], we presented a QoS management framework that enabled system developers and application developers to quantitatively define QoS, and to analytically plan and allocate resources. The system resources are distributed among multiple applications of different quality levels such that the net utility that accumulates to the end-users is maximized.

Using this architecture, the problem of maximizing system utility by allocating a single finite resource and multiple finite resources to satisfy the QoS requirements has been studied in [7] and [5] respectively. It was also proved in [5] that an optimal solution for allocation of multiple resources is NP-hard.

In this project, we consider a more refined problem of apportioning multiple resources with many choices on resource-types. We then present three solutions to the problem. All these solutions are the variants of the local search technique for multiple resource multiple-dimension scheme presented in [5].

We consider a distributed system with multiple resources that services n independent applications denoted by $T_1,..,T_n$. There are m shared resources which are allocated across $n$ applications. The resources could be of same or of different types, such as processors (as sources of computation) or network links (as sources of network bandwidth). We let $R_i$ denote the set of possible allocation choices for the $i^{th}$ resource. Each of the shared resources has a maximum quantity or size denoted by $r^{max}=(r^{max}_1,..,r^{max}_m)$. Each application or task has a quality of service (QoS) requirements across one or many dimensions. For example, a video conferencing application can have the dimensions such as Cryptographic security, Data delivery reliability, video related quality (resolution, frame rate etc.) and audio related quality (sampling rate, audio timeliness etc.).

An user derives satisfaction through these various qualities. Higher the quality along any dimension, higher is the satisfaction. We quantify this in the form of a parameter called utility. The value of this parameter along different quality dimension depends on the application as well as the user. For example, for a fast-moving video application, the frame rate may provide higher utility to the user than the resolution. It may reverse if it happens to be very slow-moving video. Depending on the constraints of various resources, we may need to make trade-offs among these different quality-dimensions.

Thus, we have application profile that is divided into two components, viz., QoS profile and Resource profile. The QoS profile has the following components:



  1. Quality Space: $Q_i$



  2. Quality Index: For the jth component if $Q_i$ we define a bijective function, $f_{ij}$ which maps to the elements of $Q_{ij}$ into integer valued labels, i.e.

    $f_{ij}:Q_{ij}\rightarrow{1,2,..\vert Q_{ij}\vert}$

    The labels preserve the quality ordering so that $q_1$ is better than $q_2$ if $f_{ij}(q_1) > f_{ij}(q_2)$.



  3. Dimension-wise Utility: $u_{ij}:Q_{ij}\rightarrow \Re$, a numerical assessment of the utility achieved by setting $q_{ij} \in Q_{ij}$ for application $t_i$ on quality dimension j.



  4. Application Utility: a utility or quantitative measure associated with application $\tau_i$.

    $u_i:Q_i \rightarrow \Re$

    The function $u_i$ could, for example, be defined as a weighted sum of $u_{ij}$.



The resource profile for a task defines the relation between resource $R$ and $Q_i$, $r \models q$. This is a list of resource allocation combinations that can be used to achieve a certain level of QoS point $q$.Since there is a combination of resources that can give rise to the same quality point $q$, we define a relation between $r$ and $q$ instead of a function.

In addition to Application Profile, each task has a User Profile. This dictates the user-specific quality requirements associated with a particular session. An User profile could be a collection of a few templates supplied with the Application profile.



Application Utilities

The application utility $u_i$ for a task $T_i$ is defined as a sum of the utilities (or values) accrued when $T_i$ achieves certain qualities across different dimensions, i.e., $u_i:Q_i \rightarrow \Re$. An application utility is defined to be weighted sum of dimension-wise utilities.

A system utility, on the other hand, is the combined utilities of all the applications. It can be defined as a weighted sum of all application utilities for ``differential services'', or minimum of the utilities among the applications for ``fair'' sharing.

MRMD Problem: For a given set of tasks $T_1,..,T_n$, our problem is to assign qualities ($q_i$) and allocate resources from various resource units (or, containers) ($r_i$) such as processors or network links to tasks or applications, such that the system utility $u$ is maximized. In other words, what we have is the following:

maximize $u(q_1,...,q_n)$

subject to $q_i \geq q^{min}_i$ or $q_i = 0, i=1,...,n,$ (QoS Constraints)

$\sum_{i=1}^n r_{ij} \leq r_{ij}^{max}$, $j=1,...,m,$ (Resource Constraints)

$r_i \models_i q_i$ $i=1,...,n.$

Replication and fault-tolerance

A task is made fault-tolerance through its replication. A replica will run on different set of resources with respect to. the original at the same quality level. The number of replicas that need to be run depends on the fault model of the system. Hence, following a certain fault-model, we can assign fault-tolerance as another QoS dimension. The values along this dimension is equated to the number of copies (replicas) of the task. The utilities achieved depend on the fault-model or the reliability of the system.

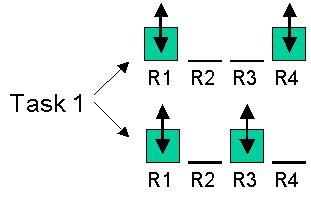

For example, consider a task $i$ that has the following resource vector allocation choices (options): $r_{i1}$,$r_{i2}$ and $r_{i3}$. At the same level of quality, any of these resource choices can be allocated to the task. In order for the task to be fault-tolerant, more than one resource vectors need to be allocated. Thus, we can generate the QoS set-points in the following way:


Fault-tolerance Quality Index Number of replicas Resource Vectors
1 0 $r_{i1}$,$r_{i2}$, $r_{i3}$
2 1 $(r_{i1}+r_{i2})$, $(r_{i1}+r_{i3})$, $(r_{i2}+r_{i3})$
3 2 $(r_{i1}+r_{i2}+r_{i3})$

For a task with $N$ resource vector options, the fault-tolerant quality index of $M$ can be attained in $\left(\begin{array}{c} N  M \end{array} \right)$ combinations of resource vectors. This automatically limits the maximum number of replicas to the number of independent resource options.

Resource Allocation Algorithm



The algorithm can be summarized as follows:

Pre-processing

Using the user and application profiles generate the resource/utility curves for each task
Apply convex hull algorithm to eliminate non-performing set-points

Optimization

Initialize all tasks to their minimum QoS level.
Compute the marginal utility  (Dutility/Dresource) each task can receive by increasing QoS by one step
Choose the task with the highest marginal utility and increase it's QoS by one step. If unallocated resources remain, go back to step 2.
Stop when no more resources can be allocated.

Multi-Resource QoS Optimization

Multiple resources in Q-RAM are handled by computing a "composite resource". The algorithm is executed using composite resource as the comparison metric. The composite resource is obtained from the formula:

Where are the different components of a resource vector and is the penalty vector depicting the relative demands of resources of each type.

Multi-resource trade-off



A task may have a set of set-points for the same QoS/Utility level and "composite resource" may not accurately differentiate between those set-points.  The solution approaches are the following:

Apply Q-RAM to each combination of resource options over all tasks (exhaustive search). This has exponential complexity with respect to the number of tasks.
Random selection of option for each task
"Intelligent" pre-selection of options for each task
Refinement of the Amrmd algorithm to accommodate option refinement.

More information, take a look at the paper here.

Hierarchical Q-RAM: Scalable Resource Allocation of Large Systems

The basic resource allocation algorithm for a large distributed system with large number of tasks and resources has scalability problems. Hence it has been extended to hierarchical version. The main ideas are the following:



Divide the task into groups or "virtual tasks"

Derive approximate utility functions for the virtual tasks corresponding to the groups

Perform "Amrmd" globally on each virtual tasks to determine their near-optimal resource allocations

Multiple levels hierarchies thus can be formed.
