Show Me
A Display Program for Meshes and More.

Jonathan Richard Shewchuk
Computer Science Division
University of California at Berkeley
Berkeley, California 94720-1776

Created as part of the Archimedes project (tools for parallel finite element methods).
Supported in part by NSF Grant CMS-9318163 and an NSERC 1967 Scholarship.
Show Me graphically displays (using X) the contents of geometric files, especially those generated by Triangle, my two-dimensional quality mesh generator and Delaunay triangulator. Show Me can also write PostScript images to files.

Show Me (version 1.3, with Triangle version 1.5) is available as a .zip file (158K) or as a .shar.gz file (157K) (uncompress with gunzip, then extract with sh) from Netlib in the voronoi directory. Please note that although Triangle and Show Me are freely available, it is copyrighted by the author and may not be sold or included in commercial products without a license.

The command syntax is:

showme [-bfw_Qh] input_file

The underscore indicates that a number should follow the -w switch.
input_file may be one of several types of file.  It must have extension
.node, .poly, .ele, .edge, .part, or .adj.  If no extension is provided,
Show Me will assume the extension .ele.  A .node file represents a set of
points; a .poly file represents a Planar Straight Line Graph; an .ele file
(coupled with a .node file) represents the elements of a mesh or the
triangles of a triangulation; an .edge file (coupled with a .node file)
represents a set of edges; a .part file specifies a partition of a mesh;
and a .adj file represents the adjacency graph defined by a partition.

Command Line Switches:

    -b  Makes all PostScript output black and white.  If this switch is not
        selected, color PostScript is used for partitioned meshes and
        adjacency graphs (.part and .adj files).
    -f  On color displays and in color PostScript, displays partitioned
        meshes by filling triangles with color, rather than by coloring the
        edges.  This switch will result in a clearer picture if all
        triangles are reasonably large, and a less clear picture if small
        triangles are present.  (There is also a button to toggle this
    -w  Followed by an integer, specifies the line width used in all
        images.  (There are also buttons to change the line width.)
    -Q  Quiet:  Suppresses all explanation of what Show Me is doing, unless
        an error occurs.
    -h  Help:  Displays these instructions.


  To zoom in on an image, point at the location where you want a closer
  look, and click the left mouse button.  To zoom out, click the right
  mouse button.  In either case, the point you click on will be centered in
  the window.  If you want to know the coordinates of a point, click the
  middle mouse button; the coordinates will be printed on the terminal you
  invoked Show Me from.

  If you resize the window, the image will grow or shrink to match.

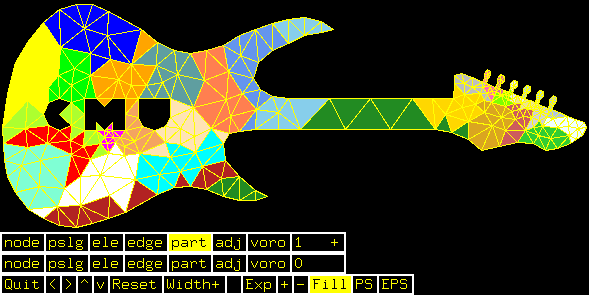

  There is a panel of control buttons at the bottom of the Show Me window:

  Quit:  Shuts down Show Me.
  <, >, ^, v:  Moves the image in the indicated direction.
  Reset: Unzooms and centers the image in the window.  When you switch from
    one image to another, the viewing region does not change, so you may
    need to reset the new image to make it fully visible.  This often is
    the case when switching between Delaunay triangulations and their
    corresponding Voronoi diagrams, as Voronoi vertices can be far from the
    initial point set.
  Width+, -:  Increases or decreases the width of all lines and points.
  Exp, +, -:  These buttons appear only when you are viewing a partitioned
    mesh (.part file).  `Exp' toggles between an exploded and non-exploded
    image of the mesh.  The non-exploded image will not show the partition
    on a black and white monitor.  `+' and `-' allow you to adjust the
    spacing between pieces of the mesh to better distinguish them.
  Fill:  This button appears only when you are viewing a partitioned mesh
    (.part file).  It toggles between color-filled triangles and colored
    edges (as the -f switch does).  Filled triangles look better when all
    triangles are reasonably large; colored edges look better when there
    are very small triangles present.
  PS:  Creates a PostScript file containing the image you are viewing.  If
    the -b switch is selected, all PostScript output will be black and
    white; otherwise, and files will be color, independent
    of whether you are using a color monitor.  Normally the output will
    preserve the properties of the image you see on the screen, including
    zoom and line width; however, if black and white output is selected (-b
    switch), partitioned meshes will always be drawn exploded.  The output
    file name depends on the image being viewed.  If you want several
    different snapshots (zooming in on different parts) of the same object,
    you'll have to rename each file after Show Me creates it so that it
    isn't overwritten by the next snapshot.
  EPS:  Creates an encapsulated PostScript file, suitable for inclusion in
    documents.  Otherwise, this button is just like the PS button.  (The
    main difference is that .eps files lack a `showpage' command at the

  There are two nearly-identical rows of buttons that load different images
  from disk.  Each row contains the following buttons:

  node:  Loads a .node file.
  poly:  Loads a .poly file (and possibly an associated .node file).
  ele:  Loads an .ele file (and associated .node file).
  edge:  Loads an .edge file (and associated .node file).
  part:  Loads a .part file (and associated .node and .ele files).
  adj:  Loads an .adj file (and associated .node, .ele, and .part files).
  voro:  Loads a .v.node and .v.edge file for a Voronoi diagram.

  Each row represents a different iteration number of the geometry files.
  For a full explanation of iteration numbers, read the instructions for
  Triangle.  Briefly, iteration numbers are used to allow a user to easily
  represent a sequence of related triangulations.  Iteration numbers are
  used in the names of geometry files; for instance, mymesh.3.ele is a
  triangle file with iteration number three, and mymesh.ele has an implicit
  iteration number of zero.

  The control buttons at the right end of each row display the two
  iterations currently under view.  These buttons can be clicked to
  increase or decrease the iteration numbers, and thus conveniently view
  a sequence of meshes.

  Show Me keeps each file in memory after loading it, but you can force
  Show Me to reread a set of files (for one iteration number) by reclicking
  the button that corresponds to the current image.  This is convenient if
  you have changed a geometry file.

File Formats:

  All files may contain comments prefixed by the character '#'.  Points,
  segments, holes, triangles, edges, and subdomains must be numbered
  consecutively, starting from either 1 or 0.  Whichever you choose, all
  input files must be consistent (for any single iteration number); if the
  nodes are numbered from 1, so must be all other objects.  Show Me
  automatically detects your choice while reading a .node (or .poly) file.
  Examples of these file formats are given below.

  .node files:
    First line:  <# of points>  <# of attributes>
                                           <# of boundary markers (0 or 1)>
    Remaining lines:     [attributes] [boundary marker]

    The attributes, which are typically floating-point values of physical
    quantities (such as mass or conductivity) associated with the nodes of
    a finite element mesh, are ignored by Show Me.  Show Me also ignores
    boundary markers.  See the instructions for Triangle to find out what
    attributes and boundary markers are.

  .poly files:
    First line:  <# of points>  <# of attributes>
                                           <# of boundary markers (0 or 1)>
    Following lines:     [attributes] [boundary marker]
    One line:  <# of segments> <# of boundary markers (0 or 1)>
    Following lines:     [boundary marker]
    One line:  <# of holes>
    Following lines:
    [Optional additional lines that are ignored]

    A .poly file represents a Planar Straight Line Graph (PSLG), an idea
    familiar to computational geometers.  By definition, a PSLG is just a
    list of points and edges.  A .poly file also contains some additional

    The first section lists all the points, and is identical to the format
    of .node files.  <# of points> may be set to zero to indicate that the
    points are listed in a separate .node file; .poly files produced by
    Triangle always have this format.  When Show Me reads such a file, it
    also reads the corresponding .node file.

    The second section lists the segments.  Segments are edges whose
    presence in a triangulation produced from the PSLG is enforced.  Each
    segment is specified by listing the indices of its two endpoints.  This
    means that its endpoints must be included in the point list.  Each
    segment, like each point, may have a boundary marker, which is ignored
    by Show Me.

    The third section lists holes and concavities that are desired in any
    triangulation generated from the PSLG.  Holes are specified by
    identifying a point inside each hole.

  .ele files:
    First line:  <# of triangles>  <# of attributes>
    Remaining lines:      ... [attributes]

    Points are indices into the corresponding .node file.  Show Me ignores
    all but the first three points of each triangle; these should be the
    corners listed in counterclockwise order around the triangle.  The
    attributes are ignored by Show Me.

  .edge files:
    First line:  <# of edges> <# of boundary markers (0 or 1)>
    Following lines:     [boundary marker]

    Endpoints are indices into the corresponding .node file.  The boundary
    markers are ignored by Show Me.

    In Voronoi diagrams, one also finds a special kind of edge that is an
    infinite ray with only one endpoint.  For these edges, a different
    format is used:


    The `direction' is a floating-point vector that indicates the direction
    of the infinite ray.

  .part files:
    First line:  <# of triangles> <# of subdomains>
    Remaining lines:

    The set of triangles is partitioned by a .part file; each triangle is
    mapped to a subdomain.

  .adj files:
    First line:  <# of subdomains>
    Remaining lines:

    An .adj file represents adjacencies between subdomains (presumably
    computed by a partitioner).  The first line is followed by
    (subdomains X subdomains) lines, each containing one entry of the
    adjacency matrix.  A nonzero entry indicates that two subdomains are
    adjacent (share a point).


  Here is a sample file `box.poly' describing a square with a square hole:

    # A box with eight points in 2D, no attributes, no boundary marker.
    8 2 0 0
    # Outer box has these vertices:
     1   0 0
     2   0 3
     3   3 0
     4   3 3
    # Inner square has these vertices:
     5   1 1
     6   1 2
     7   2 1
     8   2 2
    # Five segments without boundary markers.
    5 0
     1   1 2          # Left side of outer box.
     2   5 7          # Segments 2 through 5 enclose the hole.
     3   7 8
     4   8 6
     5   6 5
    # One hole in the middle of the inner square.
     1   1.5 1.5

  After this PSLG is triangulated by Triangle, the resulting triangulation
  consists of a .node and .ele file.  Here is the former, `box.1.node',
  which duplicates the points of the PSLG:

    8  2  0  0
       1    0  0
       2    0  3
       3    3  0
       4    3  3
       5    1  1
       6    1  2
       7    2  1
       8    2  2
    # Generated by triangle -pcBev box

  Here is the triangulation file, `box.1.ele'.

    8  3  0
       1       1     5     6
       2       5     1     3
       3       2     6     8
       4       6     2     1
       5       7     3     4
       6       3     7     5
       7       8     4     2
       8       4     8     7
    # Generated by triangle -pcBev box

  Here is the edge file for the triangulation, `box.1.edge'.

    16  0
       1   1  5
       2   5  6
       3   6  1
       4   1  3
       5   3  5
       6   2  6
       7   6  8
       8   8  2
       9   2  1
      10   7  3
      11   3  4
      12   4  7
      13   7  5
      14   8  4
      15   4  2
      16   8  7
    # Generated by triangle -pcBev box

  Here's a file `box.1.part' that partitions the mesh into four subdomains.

    8  4
       1    3
       2    3
       3    4
       4    4
       5    1
       6    1
       7    2
       8    2
    # Generated by slice -s4 box.1

  Here's a file `box.1.adj' that represents the resulting adjacencies.


Display Speed:

  It is worthwhile to note that .edge files typically plot and print twice
  as quickly as .ele files, because .ele files cause each internal edge to
  be drawn twice.  For the same reason, PostScript files created from edge
  sets are smaller than those created from triangulations.

Jonathan Shewchuk
