Ground Motion Simulation of Moon Basin

As the initial trial of the project,
Earthquake Ground Motion Modeling in Large Basins, the half moon basin
was used to test our theories, methodologies, and techniques.

There are four cases done for a given
input Ricker's pulse

Here are the figures we have been preparing for a paper to be published
to BSSA later
Figure

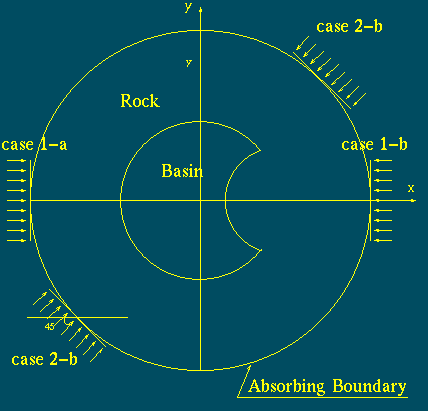

1: geometry of the sythetic basin;
Figure
2:geometry and the input waves;
Figure
3: 3D mesh;
Figure
4: damping considerations;
Figure
5: computational results in time domain: 3 D and 1 D;
Figure
6: computational results in transfer functions: 3 D and 1 D;
Figure
7: computational results in response spectrums: 3 D and 1 D;
Figure
8: The time history of some nodes along axes from both BEM and FEM,
case 1-a;
Figure
9: The time history of some nodes along axes for the other cases than
case 1-a;
Figure
10: horizontal velocity distribution and history on plan surface;
Figure
11: transfer functions of displacement x-component (U) along y axis
for the four cases;
Figure
12: transfer functions of U along x axis for the four cases;
Figure
13: transfer functions of U on the plane surface, f = 0.28Hz for the
four cases;
Figure
14: transfer functions of U on the plane surface, f = 0.40Hz for the
four cases;
Figure
15: transfer functions of U on the plane surface, f = 0.48Hz for the
four cases;
Figure
16: response spectrums of U along y-axis for the four cases;
Figure
17: response spectrums of U along x-axis for the four cases;
Figure
18: response spectrum of U on the plane surface, fn = 0.25Hz for the
four cases;
Figure
19: response spectrum of U on the plane surface, fn = 0.50Hz for the
four cases;
Figure
20: response spectrum of U on the plane surface, fn = 0.75Hz for the
four cases;
Figure
21: response spectrum of V on the plane surface, fn = 0.50Hz for the
four cases;
Figure
22: maximum horizontal displacement on the plan surface;
Figure
23: maximum horizontal velocity on the plan surface;
Figure
24: maximum horizontal acceleration on the plan surface;
Figure 25:
Fourier Transformation of U along y-axis;
Figure
26: Response spectrum for 2 locations along y for both 3D and 1D case.
Figure
27: Arias intensity of horizontal motion from the four cases;
Figure
28: Arias intensity of vertical motion from the four cases;
Figure
29: Local directivity of horizontal motion.
