Displaying Graphics with Graphics2D

Transforming Shapes, Text, and Images

You can modify the transform attribute in the Graphics2D context to move, rotate, scale, and shear graphics primitives when they are rendered. The transform attribute is defined by an instance of AffineTransform . (An affine transform is a transformation such as translate, rotate, scale, or shear in which parallel lines remain parallel even after being transformed.)

Graphics2D provides several methods for changing the transform attribute. You can construct a new AffineTransform and change the Graphics2D transform attribute by calling setTransform.

AffineTransform defines convenient factory methods to make it easier to construct new transforms:

• getRotateInstance
• getScaleInstance
• getShearInstance
• getTranslateInstance

Alternatively, you can use one of the Graphics2D transformation methods to modify the current transform. When you call one of these convenience methods, the resulting transform is concatenated with the current transform and applied during rendering.

• rotate --enables you to specify an angle of rotation in radians.
• scale --enables you to specify a scaling factor in the x and y directions.
• shear --enables you to specify a shearing factor in the x and y directions.
• translate --enables you to specify a translation offset in the x and y directions.

You can also construct an AffineTransform directly and concatenate it with the current transform by calling the transform method.

The drawImage method is also overloaded to allow you to specify an AffineTransform that is applied to the image as it is rendered. Specifying a transform when you call drawImage does not affect the Graphics2D transform attribute.

Example: Transform

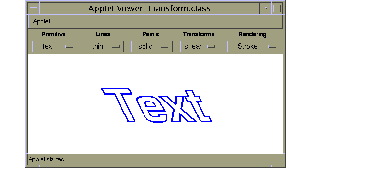

The following program, Transform is the same as StrokeandFill , except that it also allows the user to select a transformation to apply to the selected object when it is rendered.

When a transform option is selected, an instance of AffineTransform at is modified and then concatenated with a translation transform that moves the Shape to the center of the window. The resulting transform is then passed to the setTransform method to set the Graphics2D transform attribute:

switch (Transform.trans.getSelectedIndex()){
	case 0 : at.setToIdentity();
	at.translate(w/2, h/2); break;
case 1 : at.rotate(Math.toRadians(45)); break;
case 2 : at.scale(0.5, 0.5); break;
case 3 : at.shear(0.5, 0.0); break;
...
AffineTransform toCenterAt = new AffineTransform();
toCenterAt.concatenate(at);
toCenterAt.translate(-(r.width/2), -(r.height/2));
g2.setTransform(toCenterAt);

Here's the complete code for this program Transform.java and an HTML file that includes the applet Transform.html.
